NEW KNIPEX 1272190 190MM NEXSTRIP AUTOMATIC ELECTRICIANS MULTI-TOOL STRIPPER CRIMPER

Description

Knipex Tools are well known throughout the trades to be made at the very highest quality level for professional and commercial use, which is why we choose to stock and love the brand. Knipex Tools are Made in Germany and they Simply Deliver the Very Best Tools on the Market. Knipex provides an extremely durable tool that will always perform at the highest level and this tool is a fine example.

FEATURES

• Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure.

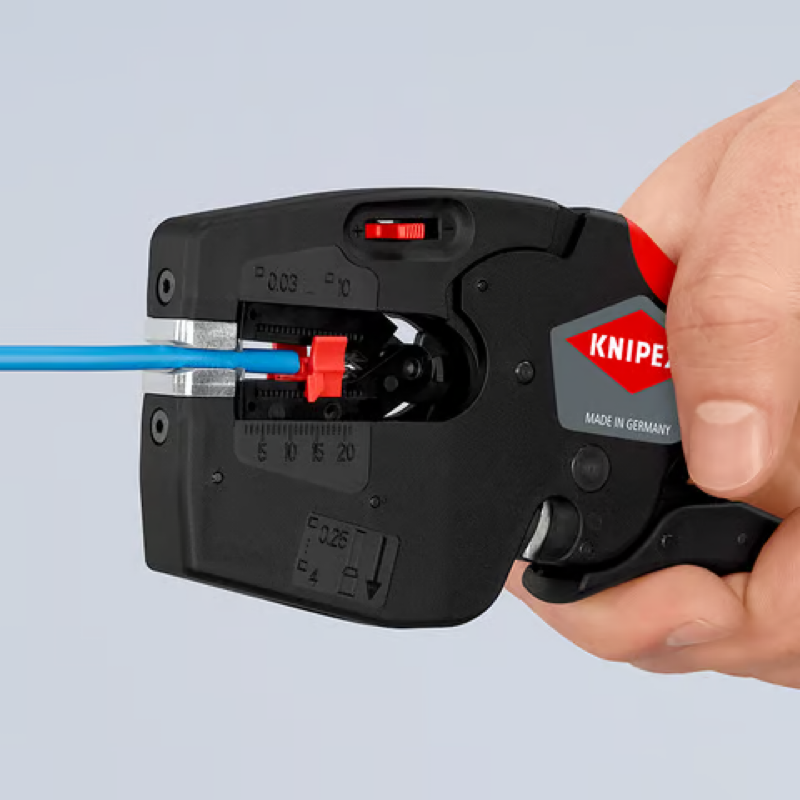

• Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work.
• Multi-component grips ensure non-slip, comfortable handling.
• Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes
• Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle.
• Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8).

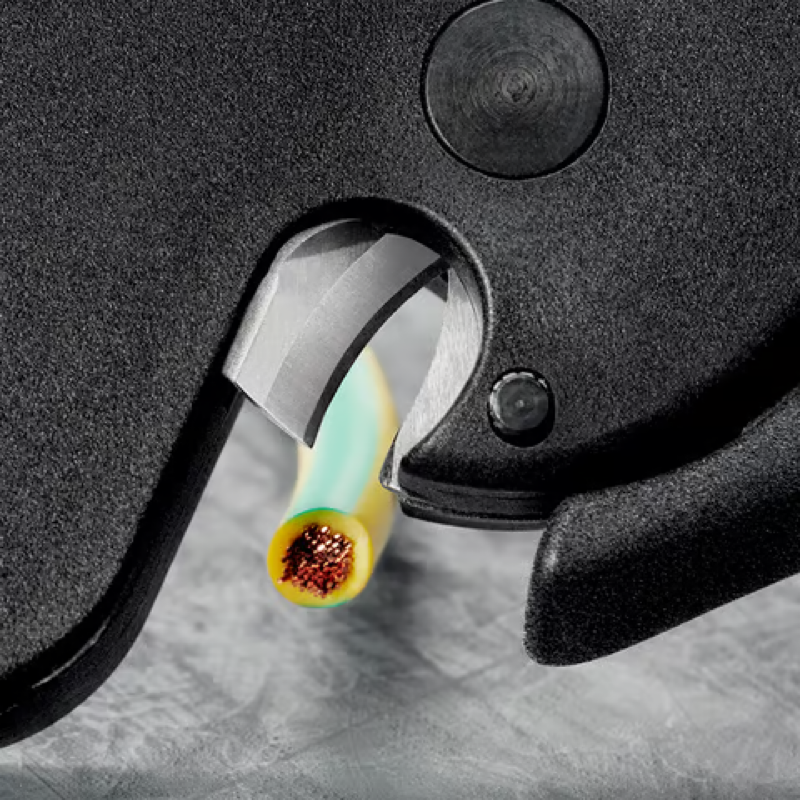

• Cleanly cuts conductors up to 10 mm² (AWG 8).
• High-quality housing made of glass fibre reinforced plastic.
• For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).
• Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².

SPECIFICATIONS

• Cutting capacity: up to 10mm² AWG: 8
• Stripping capacity: 0,03 – 10 mm² AWG: 32 – 8
• Crimping capacity: Crimping wire ferrules: 0,25 – 4 mm²; Crimping twin wire ferrules: 2 x 2,5 mm² AWG: 32 – 8
• Length (cm): 19
• Width (cm): 1,7
• Height (cm): 11
• Weight (kg): 0.170
